CAD

Mastercam’s streamlined CAD makes design work easier than ever. Each piece of geometry
is ‘live,’ letting you quickly make modifications until it’s exactly what you want.

Mastercam delivers a robust set of CAD modeling and model prep tools designed
to help you get your parts on and off the machine fast.


CAD – FOR CAM PROGRAMMERS.

Mastercam’s modeling and prep tools are focused on one thing – getting your parts on and off the machine as quickly as possible. Whether you’re bringing in a file from an outside CAD package or designing one yourself, Mastercam’s powerful CAD engine gives you control over the final details of even the most complex jobs.

Accept files from virtually any source.
Mastercam accepts file formats from whatever system you need, including IGES, Parasolid®, SAT (ACIS solids), AutoCAD® (DXF, DWG, and Inventor™ files), SOLIDWORKS® (including history tree), Solid Edge®, SpaceClaim, STEP, EPS, CADL, STL, and more. Add-On translators are available for Siemens NX, CATIA®, Pro/E (PTC Creo), and more.

Whether you’re bringing in an outside file, modeling from a print, or prototyping designs, Mastercam gives you the fast, powerful CAD tools to get the job done.

Whether you are prepping customer files…
Getting a part file from an outside source can pose unique challenges. You might need to repair a surface, cap an area, modify a “brick” solid, or just make sure your fixtures are represented on the part. Mastercam delivers a powerful set of prep tools to make sure the process goes smoothly. From robust surface creation and editing to “push-pull” solid model editing, Mastercam gives you the tools to bring a part from the designer’s desk to your machine, fast. Mastercam will even recognize features on history-free solids and give you the power to edit, remove, or build on them with a few simple clicks.

…Or building your own from scratch.
Having powerful CAD at your fingertips makes your CAM system that much more effective. Mastercam offers a robust set of modeling tools from complete wireframe and surface modeling to history-based solid modeling. A true hybrid modeling system, Mastercam lets you create, combine, and machine whichever CAD geometry suits you best. Fast dimensioning and entity analysis tools ensure that any part you model will be precise and ready to make accurate toolpaths that give you the NC code you need.

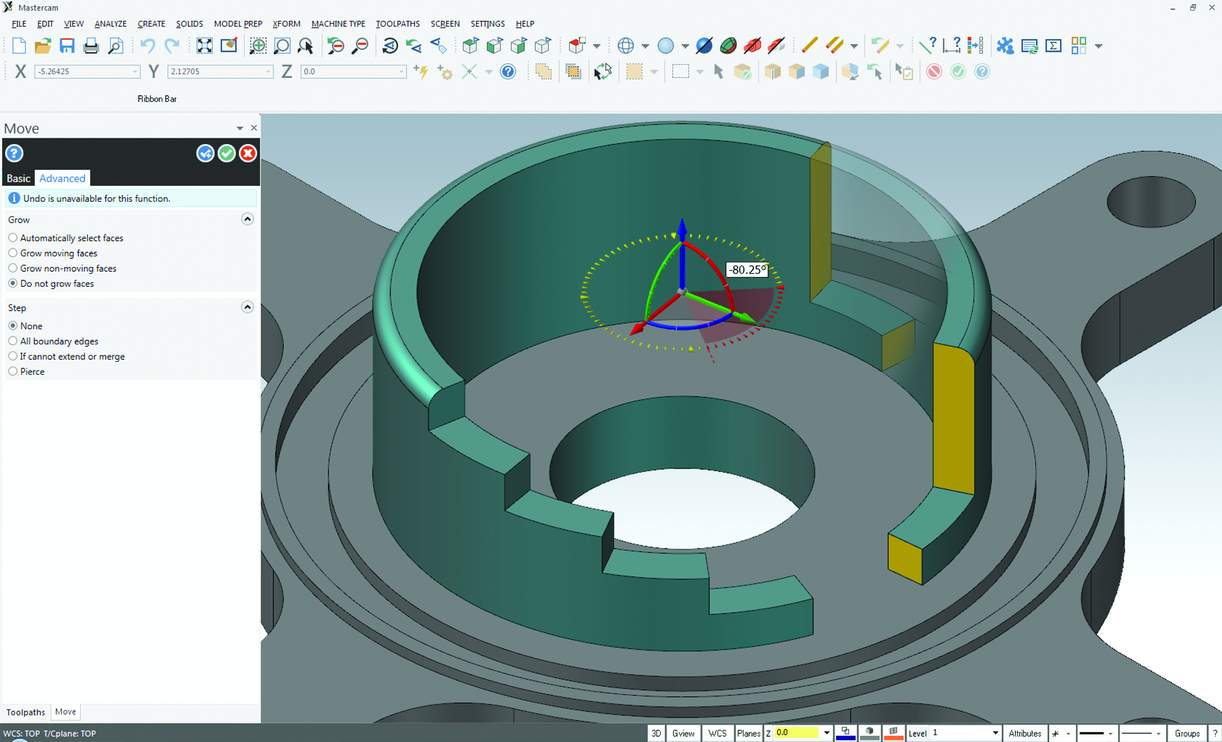

Push, pull, remove and directly edit features on imported solids, even if they have no history.
